NHP's NLINE™ switches, isolators and GPOs
Reliable, easy operation, tested and approved - worry less about delivering power and think more on how you’ll use it.
The NLINE™ switching range offers weatherproof switches and isolators and weather protected GPOs, each with a comprehensive series of options and appropriate ratings to best suit your indoor or outdoor applications. The UV resistant polycarbonate enclosures consisting of an injected TPE gasket/membrane ensure the best protection against damaging dust and moisture ingress, ready for what New Zealand's elements throw at them.
Product range
Available through your local electrical wholesaler
-
GPOs
-
Switches
-
AC Isolators
-
DC Isolators

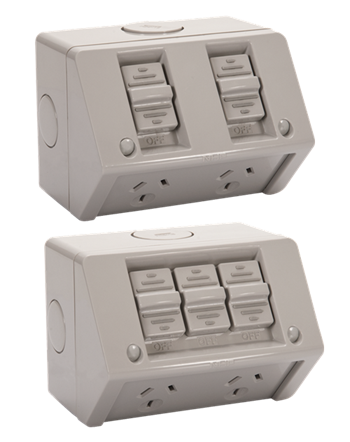

Weather protected GPOs
Tested and approved to
AS/NZS 3112
Outlet options:
Single & double
Arrangement:
3 flat pin
Current ratings:
10A or 15A
Ingress protection
IP53
Extra switch option:
Available
View GPO range

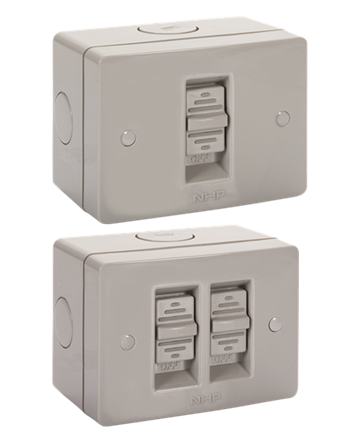

Weatherproof switches
Tested and approved to
AS/NZS 3133
Gang options:
1 to 3
Switching poles available:
1 & 2
Current ratings:
16 & 20A
Ingress protection
IP66
Enclosure option:
Small & large
View switch range

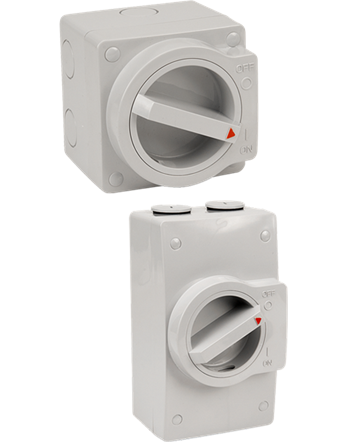

Weatherproof AC isolating switches
Tested and approved to
AS/NZS 3133
Padlockable:
Yes
Switching poles available:
1 to 3
Current ratings:
10, 20 & 40A
Ingress protection
IP66
Enclosure option:
Small & large
View AC isolator range

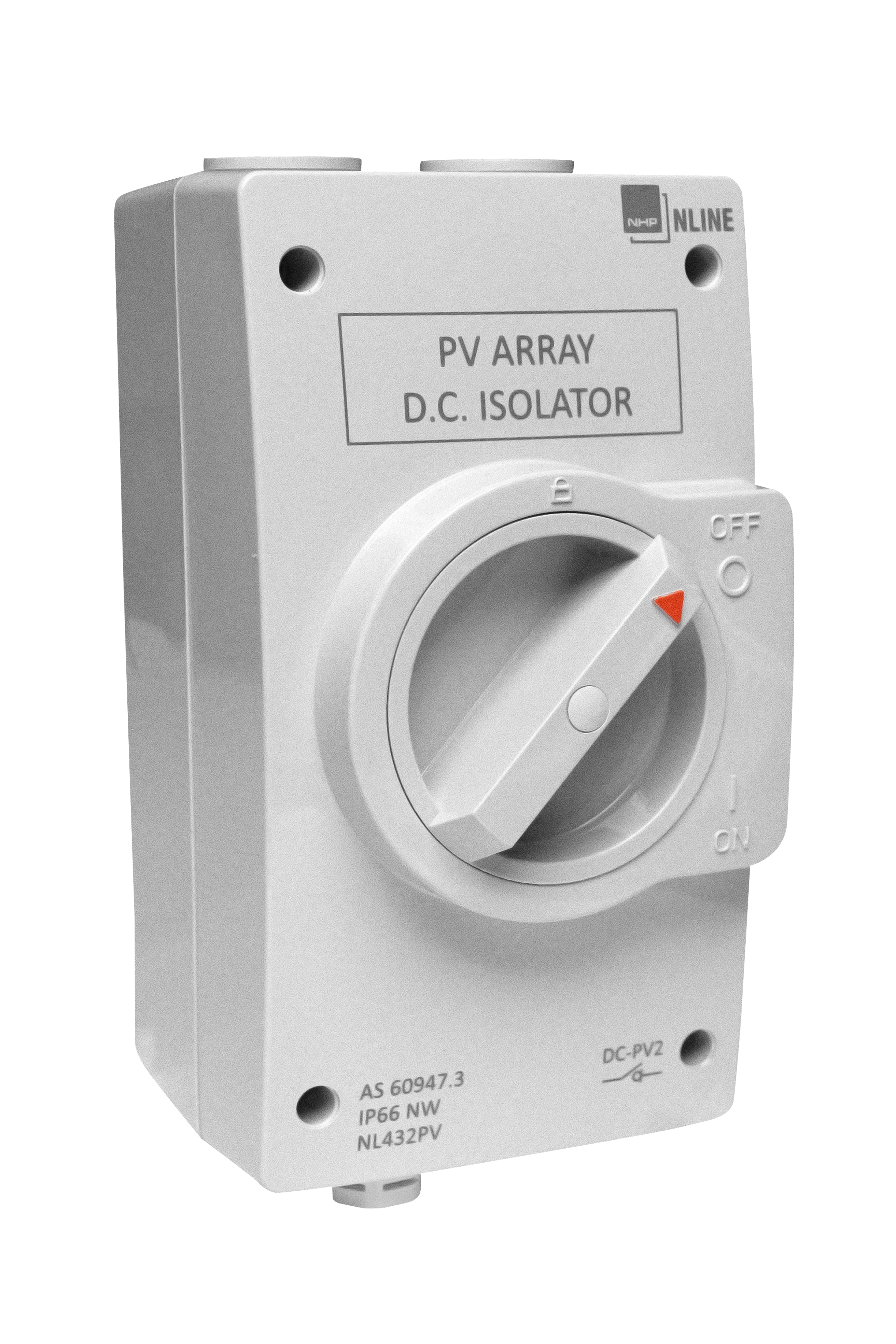

Weatherproof DC isolator
Fully compliant with:
AS 60947.3:2018
Padlockable:
In OFF
Pressure compensation device:
Included, pre-fitted
Ratings:
Up to 1500V d.c. available *
Ingress protection
IP66NW (No water)
Utilisation category
DC-PV2 / DC-21B
View DC isolator range
* refer to datasheet and installation manual for full ratings
Product highlights
Indoor & outdoor applications
From cool rooms to caravans, find a NLINE™ product for your application.
Standard
Compliant to the appropriate standards and suitable to be used throughout New Zealand
Extensive range
The NLINE™ switching range offers various GPOs, switches and isolators for your needs
Easy installations
Easy to use back box with generic mounting holes and cable entries
Reliable
The NLINE™ suite of products offer top notch safety and reliance
NHP ISO™ range
Safe and reliable connection and disconnection from power sources
Resources and downloads
For further information on NLINE™ switching products, please download the documents below or contact your local NHP representative on 1300 NHP NHP.
Product brochures
Selection guides
Technical downloads
Certificates of conformity
Catalogue No. NL120S
AC Isolating Switch
Catalogue No. NL120L and NL320L
AC Isolating Switch
Catalogue No. NL140L and NL340L
AC Isolating Switch
Catalogue No. NL432PV
Enclosed DC isolator
Catalogue No. NLGPO10S, NLGPO10D, NLGPO10DX, NLGPO15S, NLGPO15D and NLGPO15DX
Weather Protected GPOs
Catalogue No. NLSW116S, NLSW216S, NLSW116L, NLSW216L, and NLSW316L
Weatherproof Switches
Installation manual
Catalogue No. NL432PV
Enclosed DC Isolating Switch
Drawings
N-Line AC Isolating Switches CAD files
NLINE Enclosed DC Isolator CAD files
NLINE Weatherproof Switches CAD files
NLINE Weather protected GPOs CAD files
Technical notes
Technical data
Catalogue No: NL432PV - Enclosed DC isolating switch
Technical datasheet
